Lorex NC4K8-3224WD 32 Channel 8TB 4K Fusion NVR System with Twenty-Four 4K (8MP) IP Dome Cameras with Listen-In Audio, 16-Channel PoE Switch, 130ft Night Vision, Color Night Vision

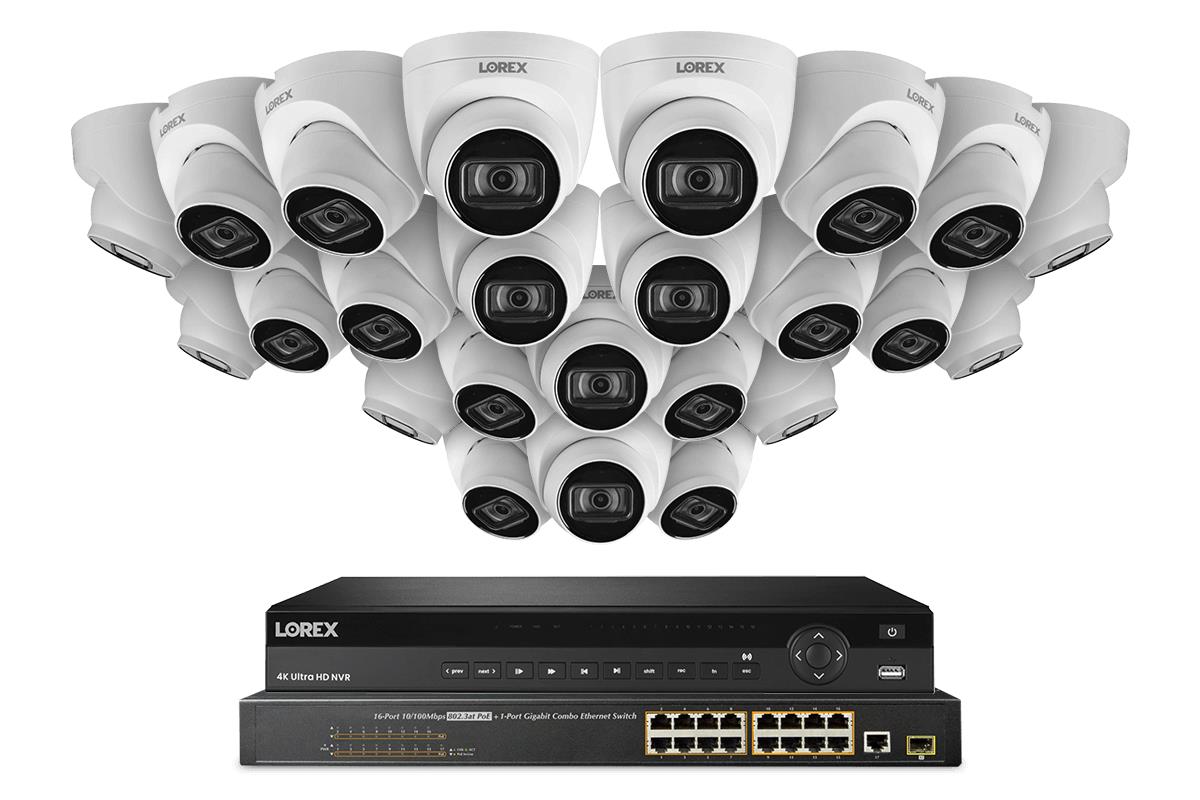

4K IP NVR System with 32-channel NVR and Twenty-Four 4K (8MP) IP Dome Security Cameras

NC4K8-3224WD

With industry-leading 4K (8 megapixel) resolution, this security camera system from Lorex will bring a whole new level of detail to your security monitoring. It includes a 32-channel Network Video Recorder (NVR), twenty-four 4K (8MP) IP dome security cameras, and a PoE switch. Whether you are looking to protect your home or small business, this powerful security camera system will help you secure the things that matter most.

Built-in microphone Equipped with a built-in microphone, this camera will provide you with listen-in audio recording.* This will provide you with an extra layer of information or evidence, such as voices, that would not be there with only the video footage itself. *Please note, audio recording without consent is illegal in certain jurisdictions. Lorex assumes no liability for the use of its products that do not conform with local laws.

H.265 / HEVC encoding This security camera is equipped with High-Efficiency Video Encoding (HEVC) or H.265 video compression. This encoding technology efficiently compresses file sizes. In fact, it can compress file sizes up to 50% more than files using the previous encoding technology (H.264), without any noticeable degradation in quality. HEVC encoding will also save you plenty of bandwidth while watching live or recorded video remotely.

Lorex Cloud Mobile App Easily access your security camera system through our innovative Lorex Cloud™ app for your mobile devices. With this app, you can securely view your security cameras from virtually anywhere in the world, keep track of all motion activity with easy-to-read timelines, and receive push notifications for motion-triggered events.

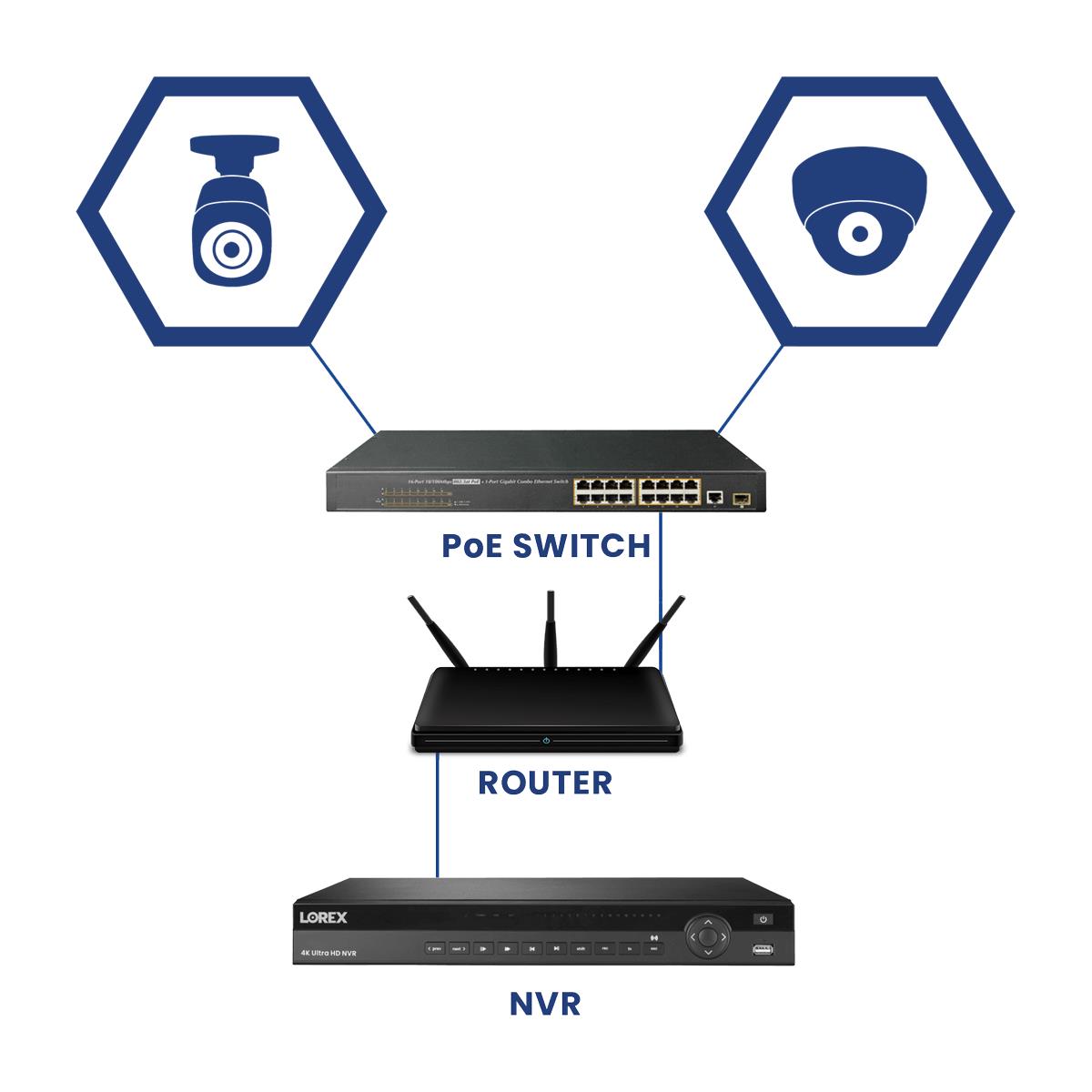

What is the included PoE switch for? The 32-channel NVR supports up to 32 security cameras but only has 16 built-in PoE ports on the back. This is why a PoE switch has been included in this system. By connecting this PoE switch to your system you can utilize the remaining open channels.

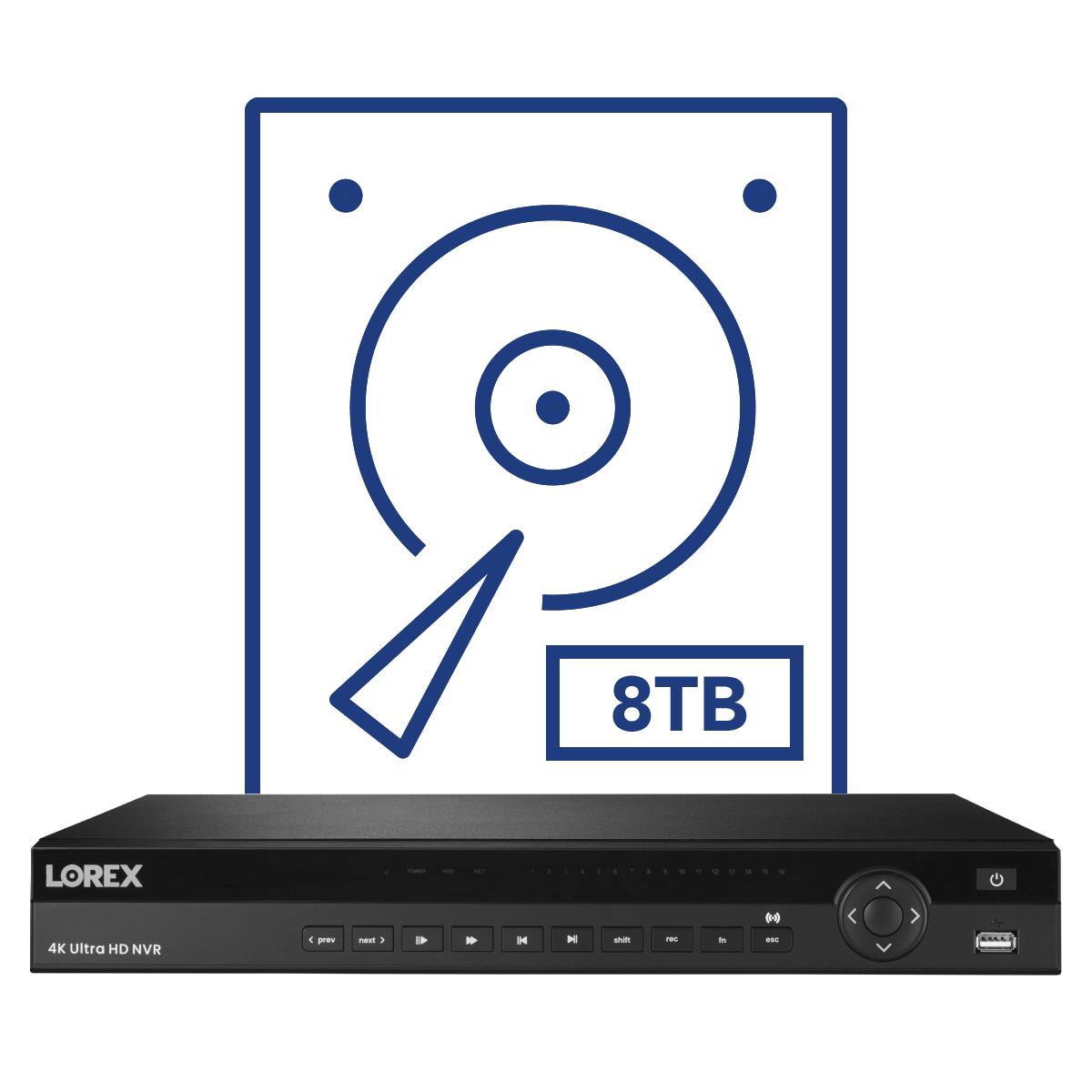

Reliable security grade hard drive with no hidden storage fees Included in the NVR is an 8TB security-grade hard drive that has been designed to meet the demands of 24/7 surveillance, while also providing ample storage space for all recorded video footage. With the possibility of increasing storage space up to 20TB (2 × 10TB), there is more than enough room to safely store all motion events that only you can access.

No Monthly Fees

There are absolutely no monthly fees associated with this security system. All video footage is safely stored on the security grade hard drive located within the recorder.

With or Without the Internet

Standalone camera systems do not need the internet to operate. However, an internet connection will be necessary if you wish to use a smartphone, tablet or computer to access features such as remote monitoring.

Connects directly to TVs and Monitors

Easily watch live video feeds or review video footage on most Monitors or HD TVs by using the included HDMI cable.

NVR Network Video Recorder

Security NVRs will connect to IP cameras using CAT5 network cables and will store pre-compressed video footage from IP cameras.

4K Ultra HD Resolution (4×1080p Full HD)

4K resolution offers four times the resolution of 1080p with approximately 4000 horizontal pixels, provides the maximum level of detail and clarity available.

24/7 100% Duty cycle hard drive pre-installed

The hard drives are designed to work in a security environment, including simultaneous recording & playback from various streams.

Lorex Cloud Connection and Apps

Lorex Cloud will help simplify and organize your life by keeping track of all your security cameras from anywhere in the world on any iPhone®, iPad® or Android® devices.

N882A38B

4K Ultra HD Network Video Recorder:

• Record and view video up to 4K (8MP) resolution¹
• View live footage in up to 30fps and digitally zoom in on distant objects for better clarity
• 2 hard drive bays with up to 2 × 10TB of storage space
• Security grade hard drive designed for advanced processing and the workload of 24/7 recording
• Storage mirroring for continuous back-up of data from one hard drive to another
• Get Motion push notifications when motion from a person/vehicle is detected²
• Reduce unnecessary alerts and false alarms with advanced motion detection⁴
• Use Smart Search to filter motion events for reviewing footage quickly and easily
• This NVR system contains a built-in 16-channel capacity

ACCLPS263B

16-Channel PoE Switch:

• Centralized power distribution - Easy all-in-one PoE switch
• 1 Gigabit rated RJ45/SFP port for fast device/network connection
• High speed transmission of IP surveillance data
• 220W total PoE power budget (up to 30.8W per port)
• Convenient Real-time PoE usage LED indicators

E841CD-E

4K Ultra HD IP Dome Security Camera:

• 4K (8MP) Ultra HD, ensuring clear and detailed footage, every time¹
• See more with a wide-angle 105° field of view
• HDR (High Dynamic Range) provides improved video clarity in high-contrast lighting, revealing details in extremely bright and darks areas of the footage
• Weatherproof rated (IP67)²
• Operates in temperatures as low as -22°F (-30°C) and high as 140°F (60°C)
• Aluminum Alloy housing, designed to withstand harsh weather conditions
• Experience enhanced nighttime clarity and better video evidence with Color Night Vision™ (ambient lighting required)³
• Up to 130ft (40m) IR night vision in low light and 90ft (27m) in total darkness⁴

Product Specification
